Upgrade your home's heating and cooling systems with the MRCOOL 30,000 BTU VersaPro 2nd Gen Central Ducted Heat Pump Split System. This powerful bundle includes a high-performance condenser and an efficient air handler, both designed to deliver year-round comfort and energy savings.
With customizable lineset options and an optional heat kit, you can tailor this system to meet your specific needs, making it an ideal choice for any home.
| PRODUCT HIGHLIGHTS |
| Year-Round Comfort & Efficiency |
The MRCOOL VersaPro system provides reliable heating and cooling throughout the year, ensuring your home remains comfortable in any season while optimizing energy consumption to lower utility costs. |
| Superior Energy Performance |
Featuring a SEER2 rating of 17 for cooling efficiency and an HSPF-4 rating of 8.5 for heating, this system is engineered for exceptional energy performance, helping you save on energy bills without sacrificing comfort. |
| Whisper-Quiet Operation |
Thanks to advanced DC inverter technology, the MRCOOL system operates quietly, allowing you to enjoy a peaceful environment without disruptive noise, while maintaining efficient performance. |
| Eco-Friendly Refrigerant |
The unit uses R-454B refrigerant, which is a more sustainable option compared to traditional refrigerants, making it an eco-conscious choice for environmentally responsible homeowners. |
| Durable & Space-Saving Design |
Constructed with painted galvanized steel, the system is built for durability. Its compact, side-discharge design allows for flexible installation even in tight spaces, making it ideal for various home configurations. |
| Easy Maintenance & Smart Diagnostics |
Equipped with a built-in self-diagnostics system, the MRCOOL system simplifies troubleshooting and monitoring, ensuring that maintenance is hassle-free and your system is always operating at peak performance. |
| Comprehensive Warranty Protection |
Enjoy peace of mind with a 10-year parts and compressor warranty, providing reliable coverage and assurance of the system's quality and longevity. |
| Hassle-Free Installation |
The system is compatible with No Vac® Quick Connect® Line Sets and coupler kits, ensuring a quicker and easier installation process, so you can start enjoying your new comfort system sooner. |
| Versatile Installation Options |
The MRCOOL air handler supports multiple installation configurations, including upflow, downflow, and horizontal orientations, making it adaptable to fit different home layouts seamlessly. |
| Optional Heating Enhancement |
For increased warmth during colder months, the air handler is compatible with an optional heat kit, providing additional heating capability to enhance your home's comfort during winter. |

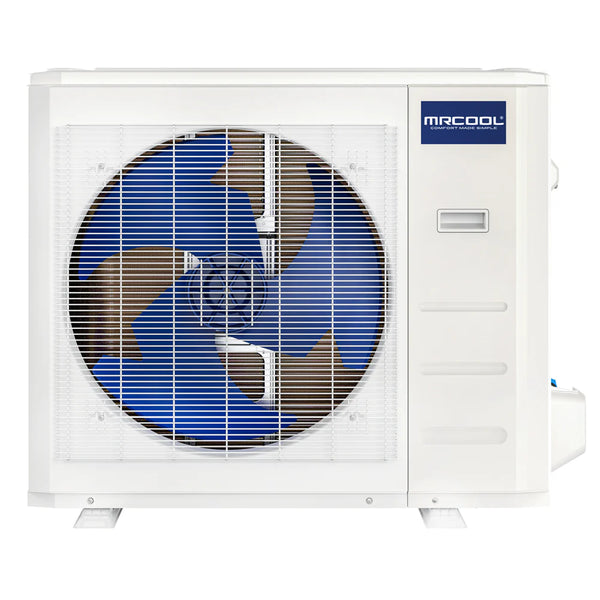

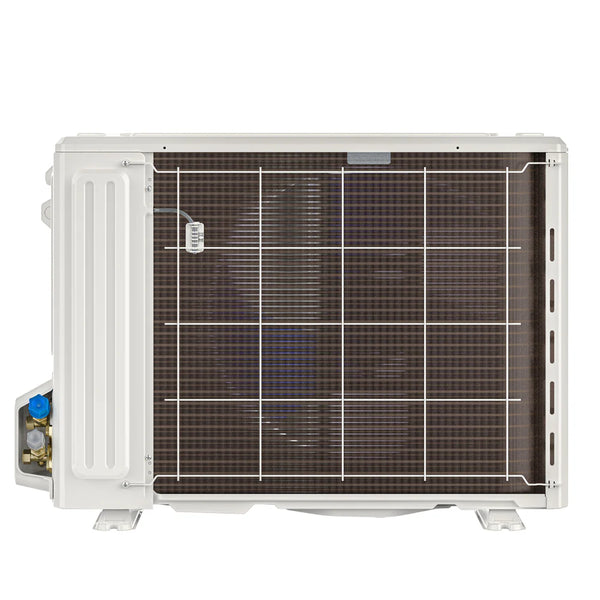

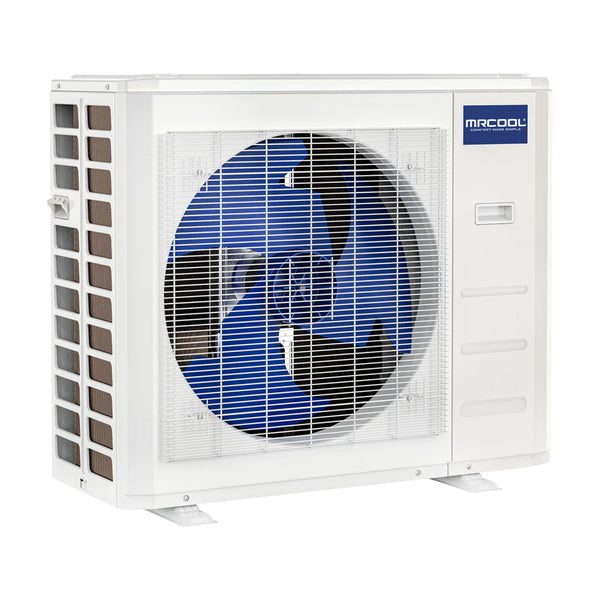

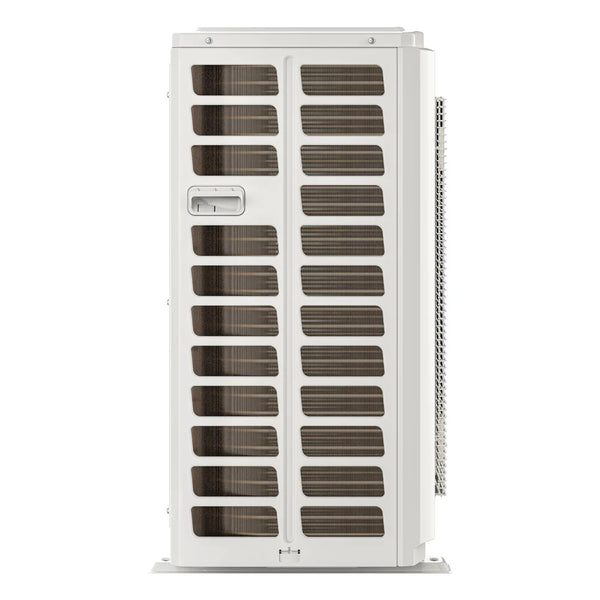

Central Ducted Heat Pump Condenser (30,000 BTU)
| Dimensions |
37.24" W x 16.14" D x 31.89" H |
| Weight |
128.97 lbs |
| Electrical Requirements |
Requires a minimum of 208-230V/60Hz/22.5-25A |
| Cooling Capacity |
30,000 BTU |
| Heating Capacity |
31,000 BTU |
| Tonnage |
2.5 |
| Outdoor Airflow |
3001.8 CFM |
| SEER2 |
17 |
| EER2 |
10.7 |
| HSPF-4 |
8.5 |
| HSPF-5 |
6.6 |
| Noise Level |
60 dB(A) |
| Refrigerant Type |
R454B |
| Refrigerant Volume |
91.71 oz |
| Liquid Line Size |
3/8" |
| Suction Line Size |
3/4" |
| Wifi Compatibility |
Yes |
| App Compatibility |
Yes |
| Certifications |
ETL Certified, AHRI Certified |
| Warranty |
10 Years Compressor, 10 Years Parts |

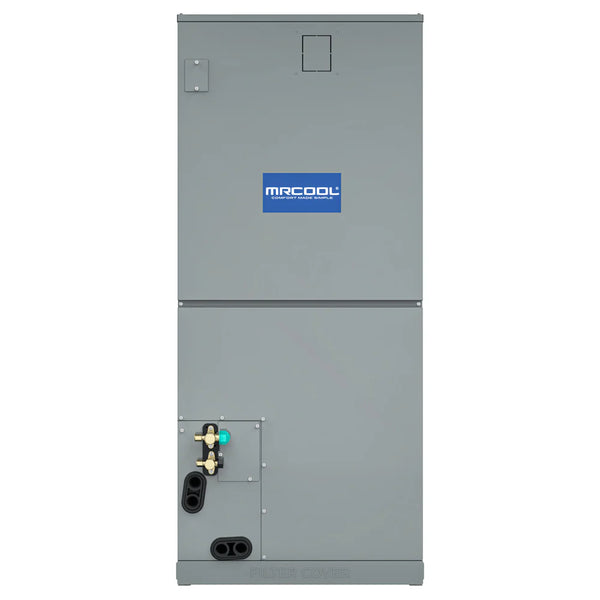

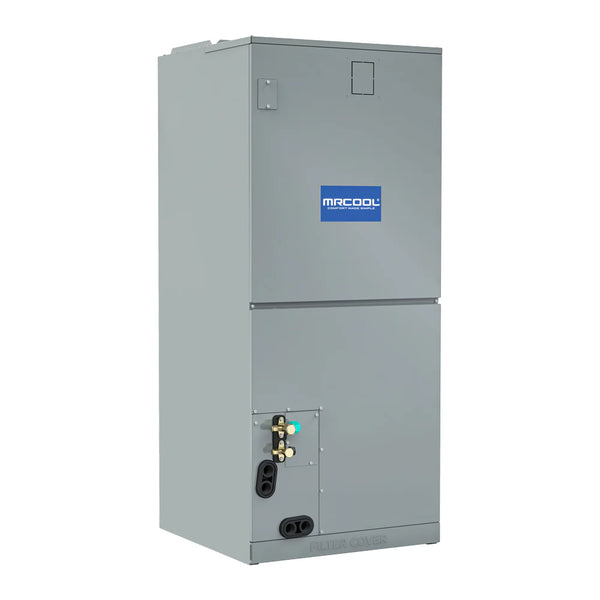

Air Handler (30,000 BTU)
| Dimensions |
21.02" W x 21.02" D x 49.02" H |
| Weight |
128.97 lbs |
| Electrical Requirements |
Requires a minimum of 115/208-230V/60Hz/8.0/6.0-15A |
| Mount Type |
Vertical (Downflow or Upflow), Horizontal (Right or Left) |
| Cooling Capacity |
30,000 BTU |
| Heating Capacity |
31,000 BTU |
| Tonnage |
2.5 |
| Coverage Area |
1,000-1,250 square feet |
| SEER2 |
17 |
| EER2 |
10.7 |
| HSPF-4 |
8.5 |
| HSPF-5 |
6.6 |
| Indoor Noise Level (Turbo/Hi/Mi/Lo/Si) |
46 / 42 / 29 dB(A) |
| Airflow (TURBO/Hi/Mi/Lo) |
988.85 / 894.67 / 806.38 / 712.21 CFM |
| Refrigerant Type |
R454B |
| Refrigerant Volume |
91.71 oz |
| Liquid Line Size |
3/8" |
| Suction Line Size |
3/4" |
| Max Line Set Length |
164 ft |
| Wifi Compatibility |
Yes |
| App Compatibility |
Yes |
| Adjustable Thermostat |
Yes |
| Filter Type |
Replaceable |
| Filter Size |
16" x 20" x 1" |
| Certifications |
ETL Certified, AHRI Certified |
| Warranty |
10 Years Compressor, 10 Years Parts |
Consult the table below to confirm the necessary BTUs to cool or heat your desired area.
9K BTU | 180-375 Sq.Ft.
12K BTU | 376-500 Sq.Ft.
18K BTU | 501-750 Sq.Ft.
24K BTU | 751 - 1,000 Sq.Ft.
36K BTU | 1,000-1,500 Sq.Ft.
Factors such as insulation, ceiling height and the number of appliances in the room may impact performance.
