Experience exceptional comfort and energy efficiency with the MRCOOL 18,000 BTU VersaPro 2nd Gen Central Ducted Heat Pump Split System. This comprehensive bundle includes a high-performance condenser and air handler, customizable lineset options, and an optional heat kit for enhanced warmth during colder months.
Designed for year-round climate control, this system integrates advanced technology to optimize energy consumption while delivering whisper-quiet operation. Elevate your home's heating and cooling capabilities with the MRCOOL VersaPro and enjoy superior performance and reliability.
| PRODUCT HIGHLIGHTS |
| High Energy Efficiency |
With a remarkable SEER2 rating of 18.8 and HSPF-4 rating of 9.1, this system is engineered to provide powerful heating and cooling while significantly reducing energy costs, making it an eco-friendly choice for your home. |
| Whisper-Quiet Operation |
Utilizing advanced DC inverter technology, the MRCOOL VersaPro ensures ultra-quiet performance that won't disrupt your peace, allowing for a comfortable living environment day and night. |
| Customizable Lineset Options |
Tailor your installation with a customizable lineset, allowing you to choose the perfect length to fit your specific space requirements, ensuring a seamless and efficient setup. |
| Versatile Installation Configurations |
The air handler supports multiple installation options—upflow, downflow, and horizontal—providing flexibility to accommodate various home layouts and ensuring optimal airflow. |
| Smart Climate Control |
Enhance your comfort with the MRCOOL Smart Thermostat and SmartHVAC app compatibility, allowing for remote temperature management and intuitive climate control from your smartphone. |
| Durable Construction |
Built with painted galvanized steel, both the condenser and air handler are designed for durability and resistance to wear, ensuring long-lasting performance in your home. |
| Eco-Friendly Refrigerant |
Utilizing R-454B refrigerant, this system is a sustainable choice that minimizes environmental impact while delivering efficient heating and cooling solutions. |
| Optional Heat Kit |
For added warmth during the colder months, the system offers an optional heat kit that enhances heating capabilities, ensuring your home remains cozy throughout the year. |
| Comprehensive Warranty |
Peace of mind comes standard with a 10-year parts and compressor warranty, ensuring long-term reliability and protection for your investment. |
| Hassle-Free Installation |
Designed for quick and easy installation, the system is compatible with No Vac® Quick Connect® Line Sets and coupler kits, making setup a breeze for both homeowners and professionals. |

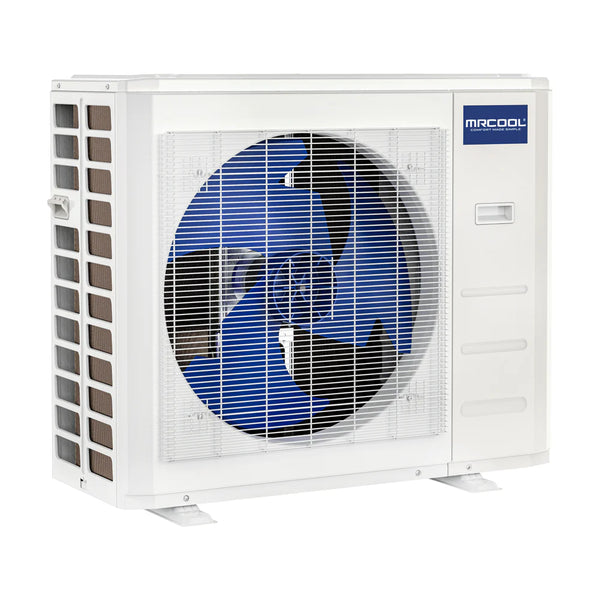

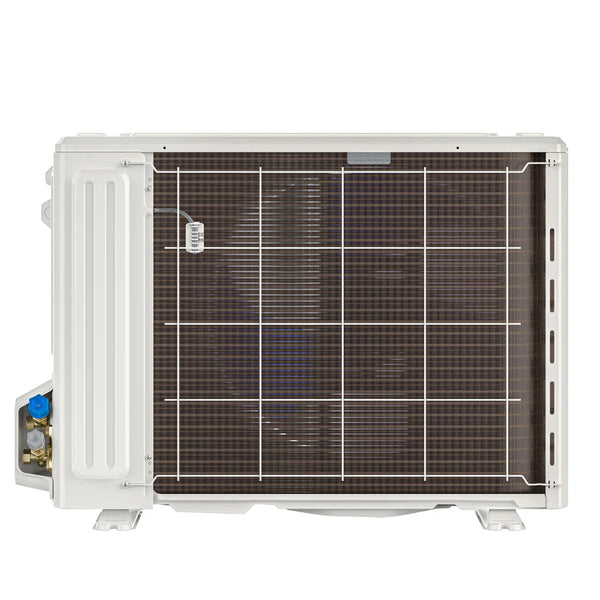

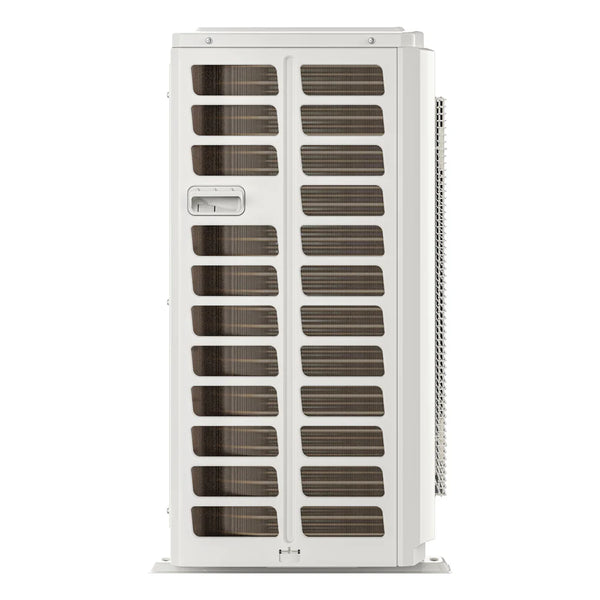

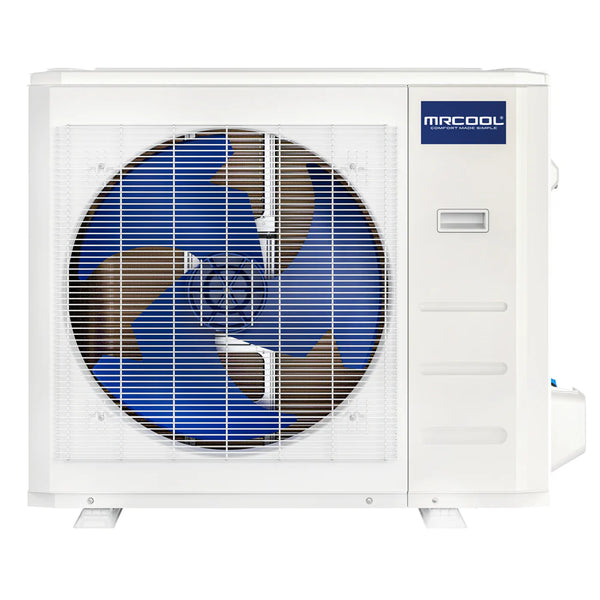

Central Ducted Heat Pump Condenser (18,000 BTU)
| Dimensions |
31.69" W x 12.99" D x 21.81" H |
| Weight |
77 lbs |
| Electrical Requirements |
Requires a minimum of 208-230V/60Hz/16-20A |
| Cooling Capacity |
18,000 BTU |
| Heating Capacity |
18,000 BTU |
| Tonnage |
1.5 |
| Outdoor Airflow |
1450.9 CFM |
| SEER2 |
16.6 |
| EER2 |
11 |
| HSPF-4 |
9.1 |
| HSPF-5 |
7 |
| Noise Level |
55 dB(A) |
| Refrigerant Type |
R454B |
| Refrigerant Volume |
51.15 oz |
| Liquid Line Size |
3/8" |
| Suction Line Size |
3/4" |
| Wifi Compatibility |
Yes |
| App Compatibility |
Yes |
| Certifications |
ETL Certified, AHRI Certified |
| Warranty |
10 Years Compressor, 10 Years Parts |

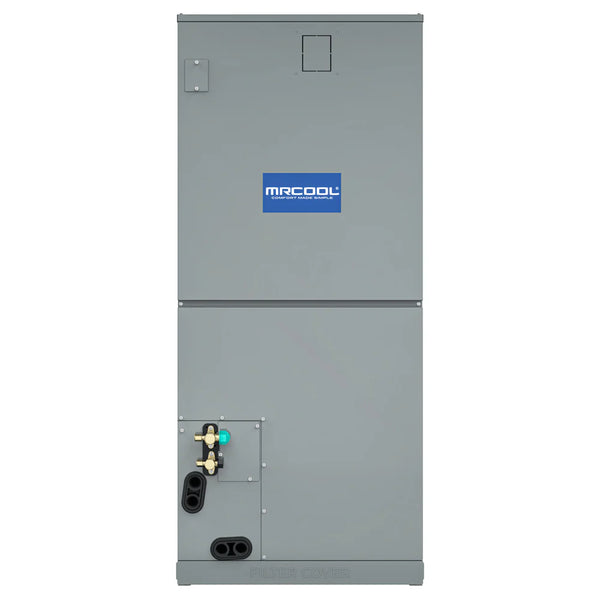

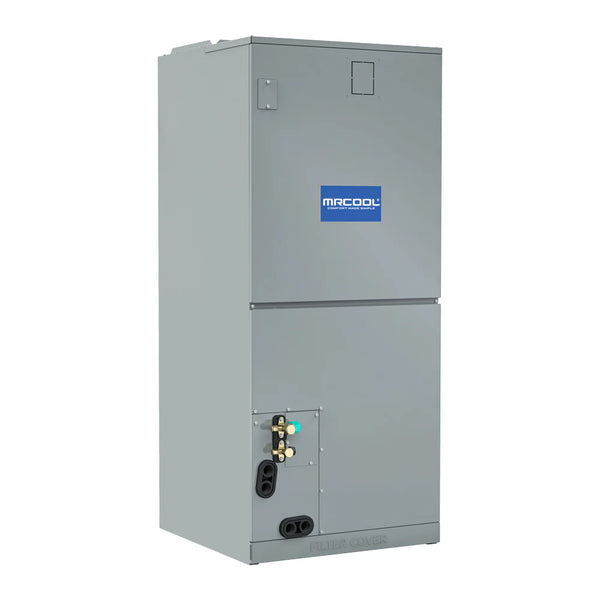

Air Handler (18,000 BTU)
| Dimensions |
21.02" W x 17.52" D x 45.00" H |
| Weight |
105.82 lbs |
| Electrical Requirements |
Requires a minimum of 115/208-230V/60Hz/5.5/4.0-15A |
| Mount Type |
Vertical (Downflow or Upflow), Horizontal (Right or Left) |
| Cooling Capacity |
18,000 BTU |
| Heating Capacity |
18,000 BTU |
| Tonnage |
1.5 |
| Coverage Area |
501-750 square feet |
| SEER2 |
18.8 |
| EER2 |
11 |
| HSPF4 |
9.1 |
| HSPF5 |
7 |
| Indoor Noise Level (Turbo/Hi/Mi/Lo/Si) |
44 / 43 / 41 / 33 dB(A) |
| Airflow (TURBO/Hi/Mi/Lo) |
618.03 / 576.83 / 529.74 / 488.54 CFM |
| Refrigerant Type |
R454B |
| Refrigerant Volume |
51.15 oz |
| Liquid Line Size |
3/8" |
| Suction Line Size |
3/4" |
| Max Line Set Length |
98.4 ft |
| Wifi Compatibility |
Yes |
| App Compatibility |
Yes |
| Adjustable Thermostat |
Yes |
| Filter Type |
Replaceable |
| Filter Size |
16" x 20" x 1" |
| Certifications |
ETL Certified, AHRI Certified |
| Warranty |
10 Years Compressor, 10 Years Parts |
Consult the table below to confirm the necessary BTUs to cool or heat your desired area.
9K BTU | 180-375 Sq.Ft.
12K BTU | 376-500 Sq.Ft.
18K BTU | 501-750 Sq.Ft.
24K BTU | 751 - 1,000 Sq.Ft.
36K BTU | 1,000-1,500 Sq.Ft.
Factors such as insulation, ceiling height and the number of appliances in the room may impact performance.
