This MRCOOL 4th Generation DIY Mini Split bundle provides everything you need to heat and cool up to 3 rooms/zones. Compatible with IOS & Android, this multi-zone system includes enhanced Wi-Fi engineering and can be easily installed in your preferred location without the need for specialized equipment!

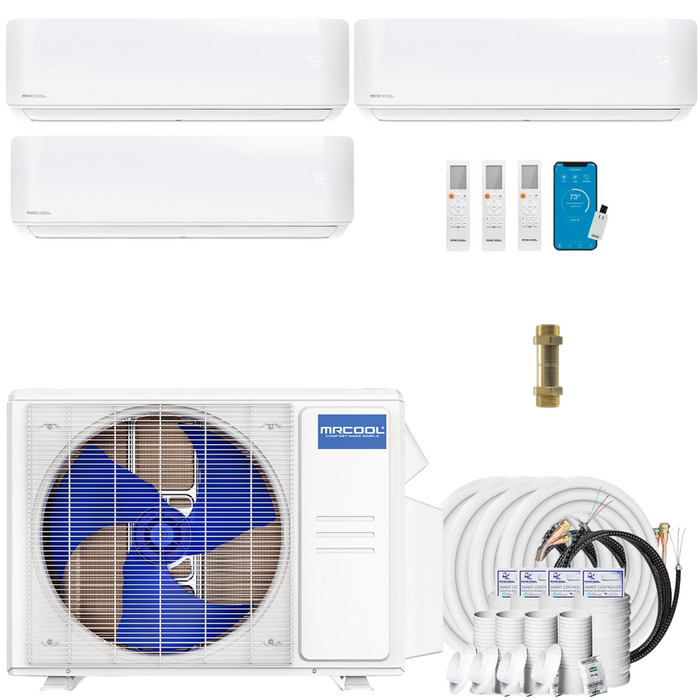

Your Bundle Includes:

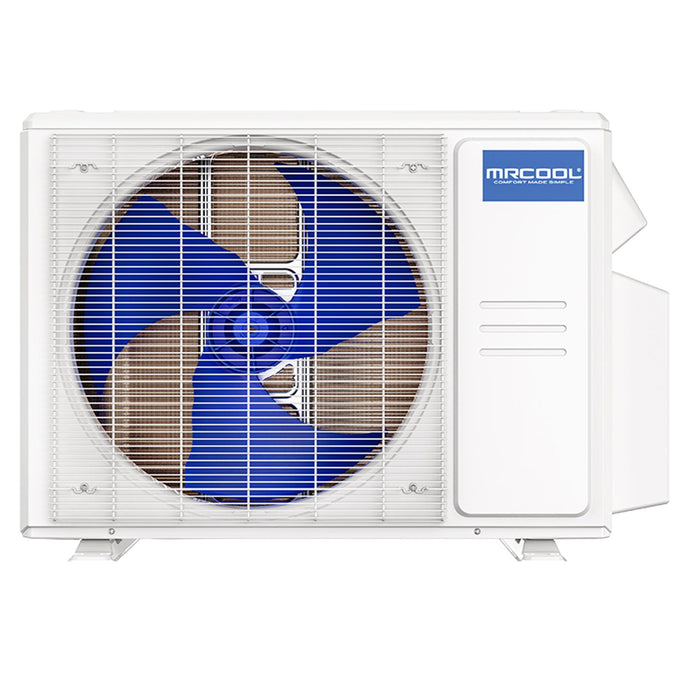

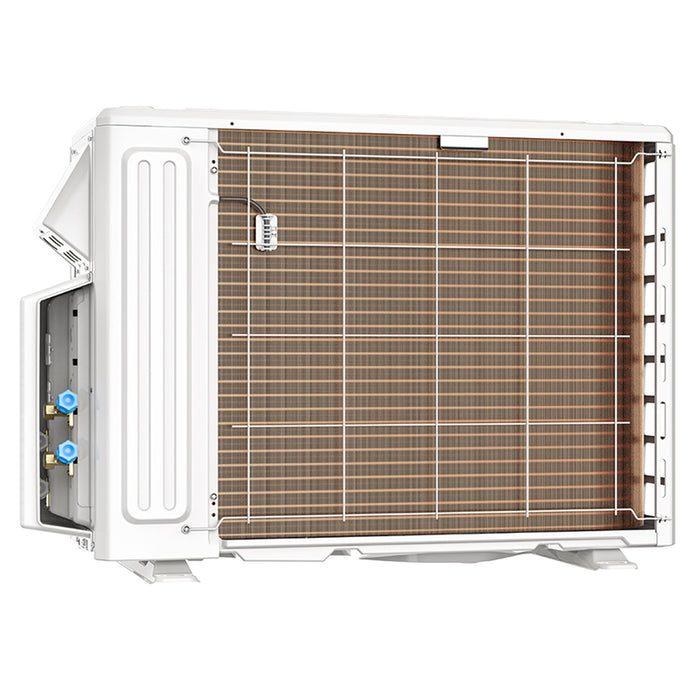

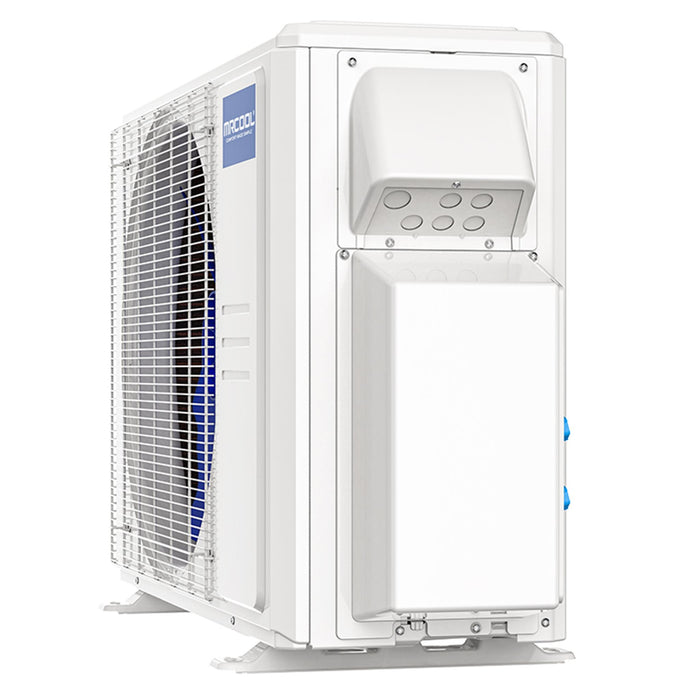

Air Conditioner & Heat Pump Condenser (x1)
-
Advanced Technology & Efficiency: This 36K BTU condenser features the latest in heat pump technology and produces an impressive 21.5 SEER efficiency rating. It is capable of heating even at temperatures as low as -13°F.
- Robust Construction & Warranty: The condenser has a robust construction which includes a Gold Fin Condenser coating, making it resistant to the elements. To top it off, MRCOOL is the only manufacturer to offer a limited lifetime compressor warranty!
- Easy Installation: Designed specifically to be used with MRCOOL patented Pre-Charged Quick Connect Line Sets, which are equipped with the precise amount of R-410A refrigerant. This means the installation process can be performed without a certified technician!

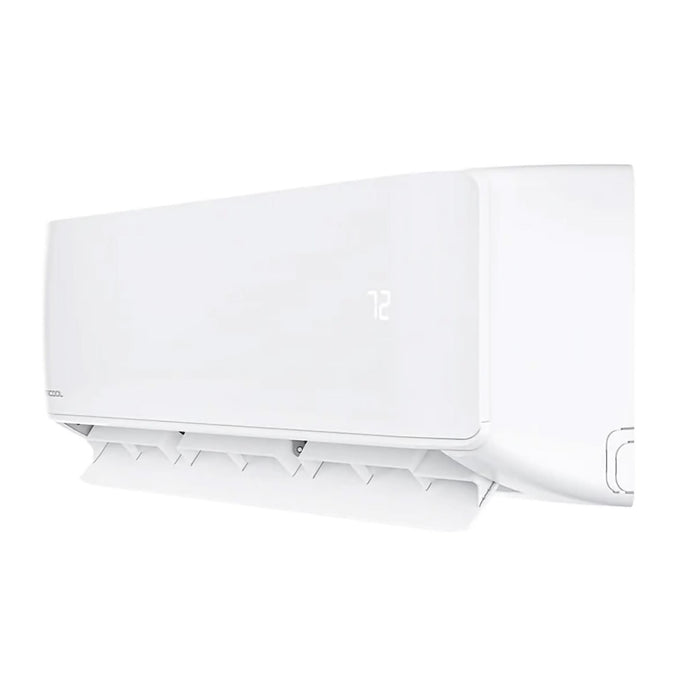

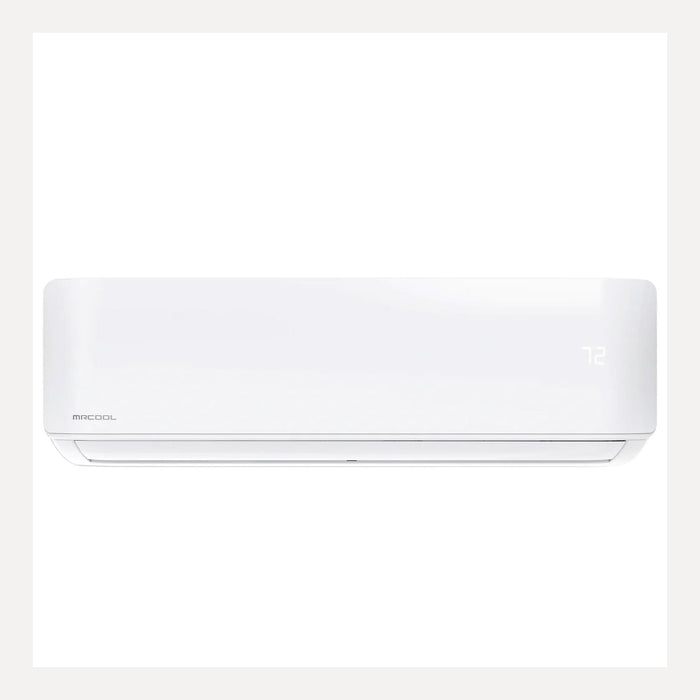

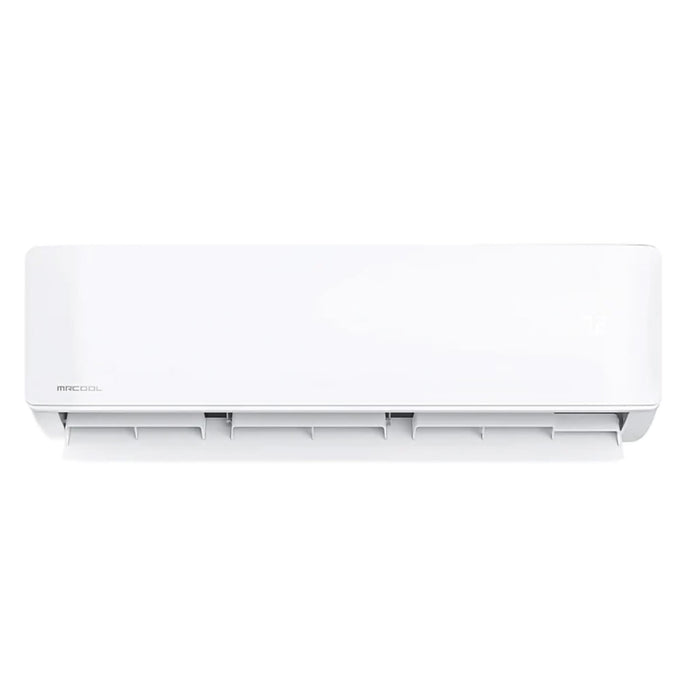

Air Handler | 12K BTU (x3)
-
Extensive Coverage: Capable of cooling and heating up to 500 square feet.
-
Versatility & Smart Control: This unit has multiple operating modes, including COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP. Conveniently adjust settings to suit your needs via the Smart HVAC app!
-
Easy Installation: Light and compact design that can be easily installed on most interior walls with the included mounting plate.

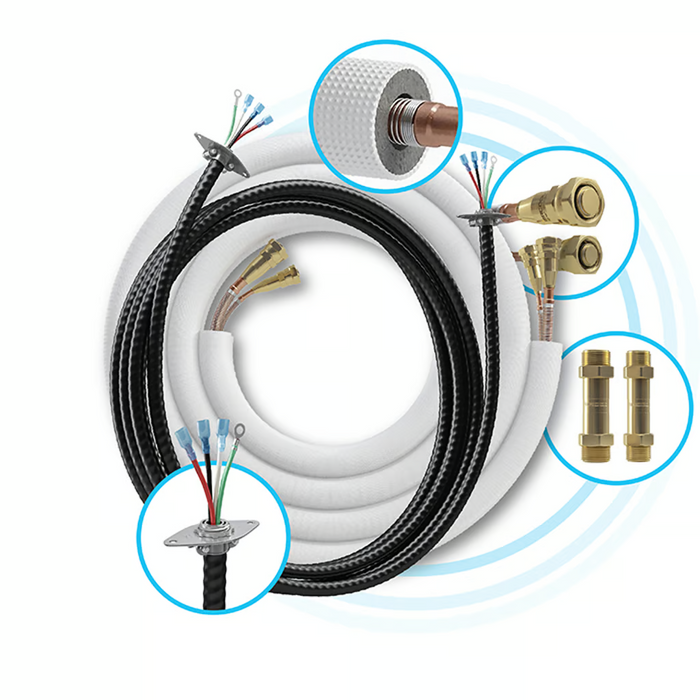

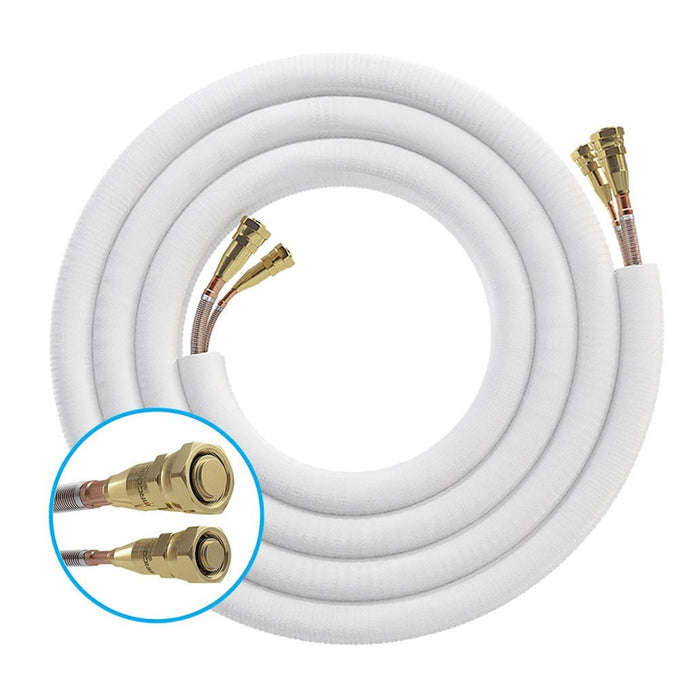

16ft Line Set (x1)
-
Compatibility: Compatible with MRCOOL DIY 9K, 12k & 18K indoor units.
-
Pre-Charged: Comes pre-charged and equipped with the precise amount of R-140A refrigerant.
25ft Line Set (x1)
-
Compatibility: Compatible with MRCOOL DIY 9K, 12k & 18K indoor units.
-
Pre-Charged: Comes pre-charged and equipped with the precise amount of R-140A refrigerant.
50ft Line Set (x2)
-
Compatibility: Compatible with MRCOOL DIY 9K, 12k & 18K indoor units.
-
Pre-Charged: Comes pre-charged and equipped with the precise amount of R-140A refrigerant.

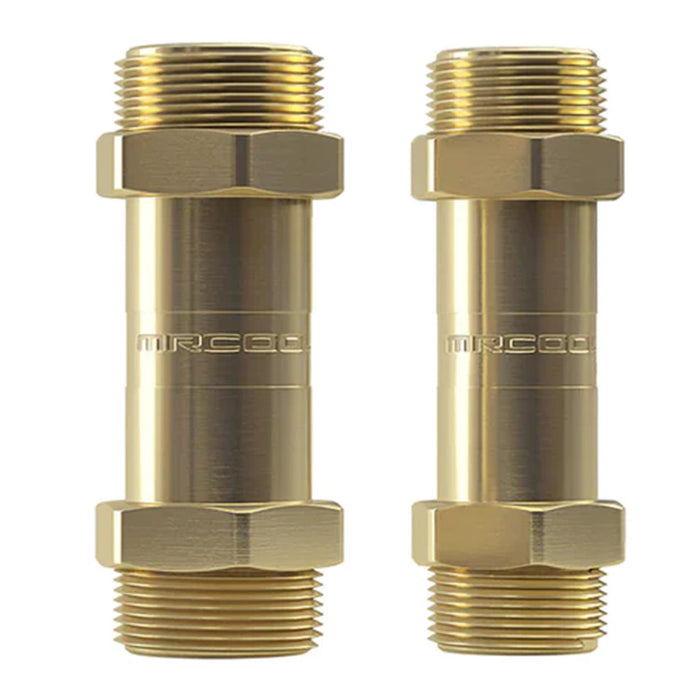

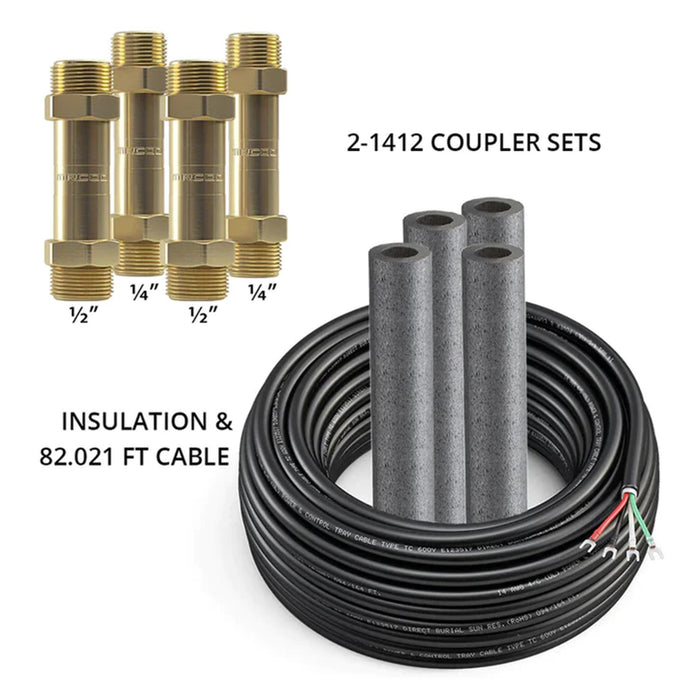

Coupler (x1)
- Coupler kit enables two standard line sets to be connected together
- DIYCOUPLER-14 + DIYCOUPLER-12 (Two Sets) w/75 ft of Communication Wire
Air Conditioner & Heat Pump Condenser
| Condenser Dimensions |
31.89"H x 37.24"W x 16.14"D |
| Condenser Weight |
170.42 lbs |
| SEER |
21.5 |
| EER |
10.5 |
| Cooling Capacity |
36000 BTU |
| Heating Capacity |
36000 BTU |
| Voltage |
208-230V |
| Zone Capacity |
Up to 4 |
| Min Ambient Cool |
5F ~122F |
| Min Ambient Heat |
-13F ~75.2F |
| Max Lineset Length |
221 ft TOTAL |
| Liquid Line Size |
1/4in (3/8in w/ adapter) |
| Suction Line Size |
1/2in (5/8 in w/ adapter) |
| Registered Warranty |
Limited Lifetime Compressor |
Base Warranty
|
5-year Parts/7-year Compressor |
Registered Compressor Warranty
|
Limited Lifetime Compressor |
| Base Compressor Warranty |
7-year Compressor |
Contains Electronics
|
Yes |
| Contains Chemicals |
Yes |
| Contains Aerosol |
Yes |
| Contains Compressed Gas |
Yes |
Air Handler
| Air Handler Dimensions |
11.69"H x 31.51"W x 7.44"D |
| Air Handler Weight |
23.81 lbs |
| Cooling Capacity |
12000 BTU |
| Heating Capacity |
12000 BTU |
| Voltage |
208-230V |
| Maximum Coverage Area |
Up to 500 sqft |
| Fan Only Option |
Yes |
| Quiet Mode |
Yes |
| Auto Cool |
Yes |
| Remote Control Included |
Yes |
| Energy Star Certified |
Yes |
| AHRI Certified |
Yes |
| Registered Warranty |
Limited Lifetime Compressor |
| Base Warranty |
5-year Parts/7-year Compressor |
Registered Compressor Warranty
|
5-year Parts |
Base Compressor Warranty
|
7-year Compressor |
| Has Batteries |
Yes |
Contains Electronics
|
Yes |
| Contains Chemicals |
Yes |
| Contains Aerosol |
Yes |
| Contains Compressed Gas |
Yes |
| Proposition 65 Warning |
Yes |
| Restricted States |
GU;PR;VI |
Line Set
| Lineset Length |
16ft |
| Liquid Line Size |
1/4 |
| Suction Line Size |
1/2 |
| Contains Chemicals |
Yes
|
| Contains Aerosol |
Yes |
| Contains Compressed Gas |
Yes |
| Proposition 65 Warning |
Yes |
| Restricted States |
GU;PR;VI
|
Line Set
| Lineset Length |
25ft |
| Liquid Line Size |
1/4 |
| Suction Line Size |
1/2 |
| Contains Chemicals |
Yes
|
| Contains Aerosol |
Yes |
| Contains Compressed Gas |
Yes |
| Proposition 65 Warning |
Yes |
| Restricted States |
GU;PR;VI
|
Line Set
| Lineset Length |
50ft |
| Liquid Line Size |
1/4 |
| Suction Line Size |
1/2 |
| Contains Chemicals |
Yes
|
| Contains Aerosol |
Yes |
| Contains Compressed Gas |
Yes |
| Proposition 65 Warning |
Yes |
| Restricted States |
GU;PR;VI
|
Coupler
| Weight |
6.39 lbs
|
| Has Batteries |
No |
| Contains Electronics |
No |
| Contains Chemicals |
No |
| Contains Aerosol |
No
|
| Contains Compressed Gas |
No
|
| Proposition 65 Warning |
No
|
| Restricted States |
GU;PR;VI
|
Consult the table below to confirm the necessary BTUs to cool or heat your desired area.
9K BTU | 180-375 Sq.Ft.
12K BTU | 376-500 Sq.Ft.
18K BTU | 501-750 Sq.Ft.
24K BTU | 751 - 1,000 Sq.Ft.
36K BTU | 1,000-1,500 Sq.Ft.
Factors such as insulation, ceiling height and the number of appliances in the room may impact performance.
