Experience the ultimate in heating and cooling comfort with the MRCOOL 36,000 BTU Hyper Heat Central Ducted Split System Bundle. This comprehensive package includes a powerful condenser and an efficient air handler, along with customizable linesets to meet your specific installation needs. Designed for year-round performance, the system operates seamlessly even in extreme weather conditions, ensuring your home remains comfortable regardless of the season.
Plus, with the option to add a heat kit, you can enhance warmth during chilly months, making this an ideal solution for any homeowner seeking reliability and efficiency.
| PRODUCT HIGHLIGHTS |
| Powerful Year-Round Performance |
The MRCOOL® Hyper Heat Central Ducted System delivers exceptional heating and cooling capabilities, boasting a SEER2 rating of up to 17.4 and HSPF-4 rating of up to 10.2, ensuring comfort in both extreme cold and heat. |
| Smart Energy Efficiency |
Featuring advanced DC inverter and variable speed technology, this system optimizes energy consumption, making it a cost-effective choice for climate control. The included MRCOOL® Smart Thermostat allows for effortless temperature management. |
| Seamless Compatibility |
Designed to integrate flawlessly with the MRCOOL® VersaPro® Central Ducted Air Handler, this bundle supports multiple airflow configurations, providing flexibility for various home layouts. |
| Eco-Friendly Refrigerant |
Utilizing R-454B refrigerant, this system is an environmentally responsible choice that minimizes your carbon footprint while maintaining optimal performance. |
| Durable Construction |
Built with a painted galvanized steel exterior, the outdoor condenser and air handler ensure long-lasting durability and resistance to wear, making them a reliable investment for your home. |
| Optional Heating Upgrade |
Enhance your home’s warmth during colder months with the option to add a compatible heat kit, providing additional heating when you need it most. |
| Comprehensive Warranty |
Enjoy peace of mind with a 10-year warranty covering the compressor, parts, and labor, automatically activated at installation for seamless protection. |
| Versatile Installation Options |
The air handler supports various installation configurations—including upflow, downflow, and horizontal—allowing for adaptability to fit different home layouts. |
| Smart Operation Features |
Equipped with a self-diagnostic panel and compatibility with the MRCOOL® SmartHVAC app, this system allows for remote temperature control and quick issue identification for added convenience. |
| Quick & Easy Installation |
Designed for efficiency, the system works with No Vac® Quick Connect® Line Sets and coupler kits, simplifying the installation process and ensuring a hassle-free setup. |

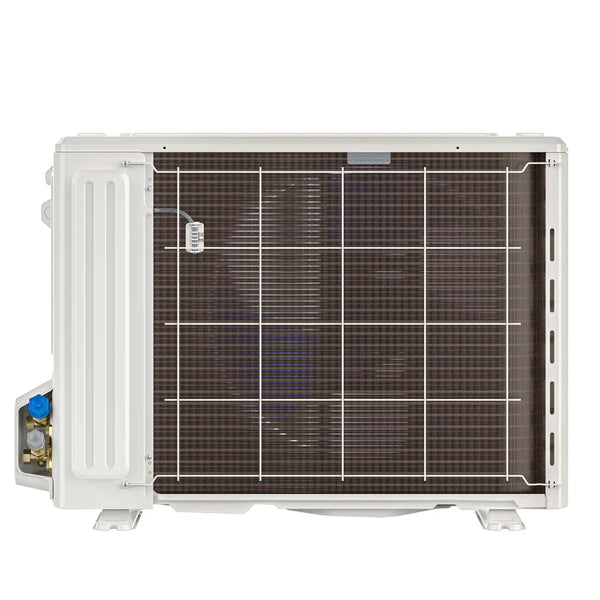

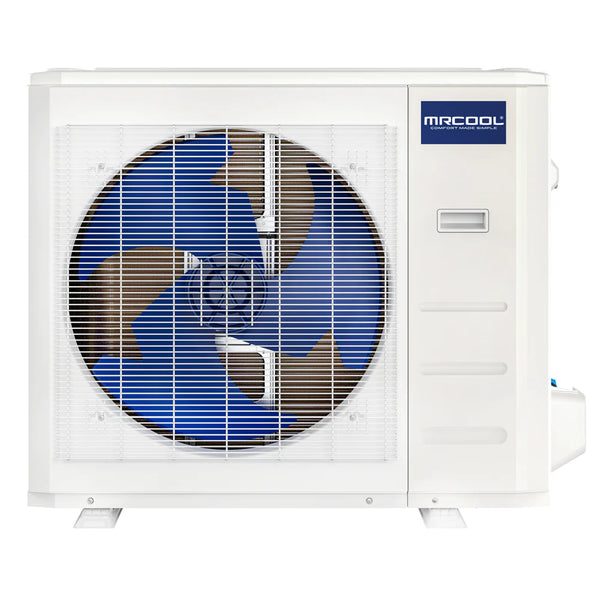

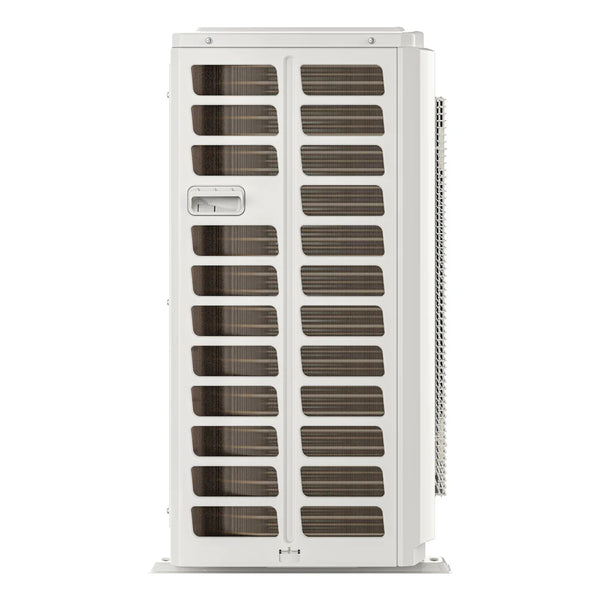

Central Ducted Heat Pump Condenser (36,000 BTU)
| Dimensions |
38.58" W x 16.34" D x 38.39" H |
| Weight |
204.15 lbs |
| Electrical Requirements |
Requires a minimum of 208-230V/60Hz/16-20A |
| Cooling Capacity |
36,000 BTU |
| Heating Capacity |
37,000 BTU |
| Tonnage |
3 |
| Outdoor Airflow |
3001.8 CFM |
| SEER2 |
17.4 |
| EER2 |
11.7 |
| HSPF-4 |
10.2 |
| HSPF-5 |
8.6 |
| Noise Level |
62.5 dB(A) |
| Refrigerant Type |
R454B |
| Refrigerant Volume |
126.99 |
| Liquid Line Size |
3/8 inch |
| Suction Line Size |
3/4 inch |
| Wifi Compatibility |
Yes |
| App Compatibility |
Yes |
| Certifications |
ETL, Energy Star & AHRI Certified |
| Warranty |
10 Years Compressor, 10 Years Parts, 10 Years Labor |

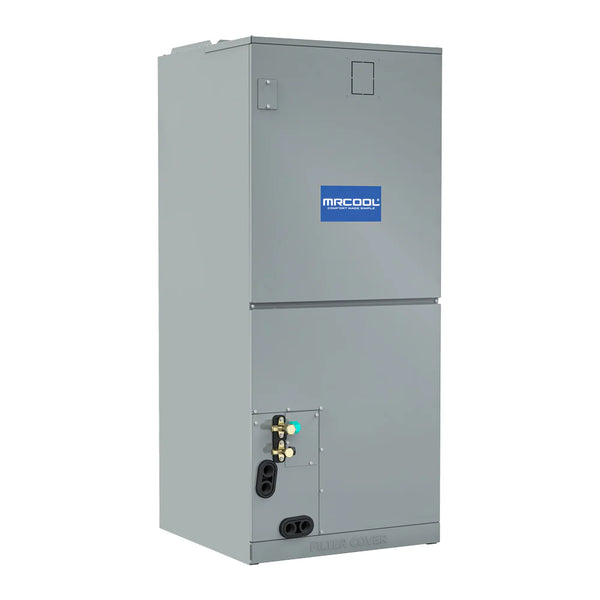

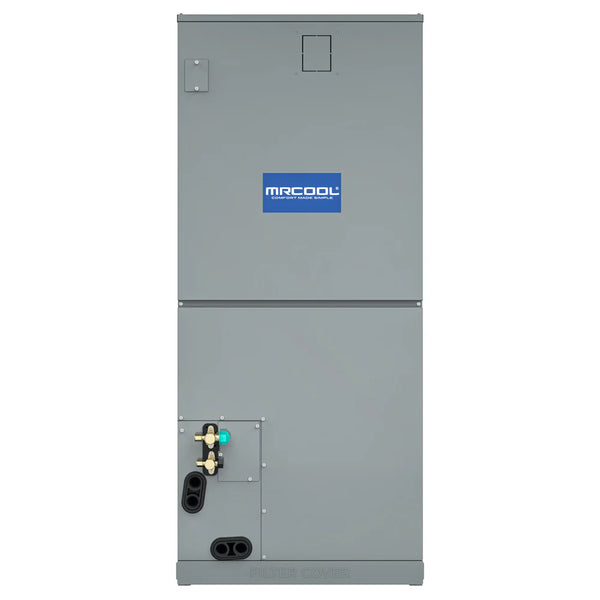

Air Handler (36,000 BTU)
| Dimensions |
21.02" W x 21.02" D x 49.02" H |
| Weight |
162.92 lbs |
| Electrical Requirements |
Requires a minimum of 115/208-230V/60Hz/8.0/6.0-15A |
| Mount Type |
Vertical (Downflow or Upflow), Horizontal (Right or Left) |
| Cooling Capacity |
36,000 BTU |
| Heating Capacity |
36,000 BTU |
| Tonnage |
3 |
| Coverage Area |
1,251-1,500 square feet |
| SEER2 |
17.4 |
| EER2 |
10 |
| HSPF-4 |
8.7 |
| HSPF-5 |
7 |
| Indoor Noise Level (Turbo/Hi/Mi/Lo/Si) |
48 / 45 / 28 dB(A) |
| Airflow (TURBO/Hi/Mi/Lo) |
1188.97 / 1983.02 / 971.19 / 865.24 CFM |
| Refrigerant Type |
R454B |
| Refrigerant Volume |
116.4 oz |
| Liquid Line Size |
3/8" |
| Suction Line Size |
3/4" |
| Max Line Set Length |
246 ft |
| Wifi Compatibility |
Yes |
| App Compatibility |
Yes |
| Adjustable Thermostat |
Yes |
| Filter Type |
Replaceable |
| Filter Size |
16" x 20" x 1" |
| Certifications |
ETL Certified, AHRI Certified |
| Warranty |
10 Years Compressor, 10 Years Parts |
Consult the table below to confirm the necessary BTUs to cool or heat your desired area.
9K BTU | 180-375 Sq.Ft.
12K BTU | 376-500 Sq.Ft.
18K BTU | 501-750 Sq.Ft.
24K BTU | 751 - 1,000 Sq.Ft.
36K BTU | 1,000-1,500 Sq.Ft.
Factors such as insulation, ceiling height and the number of appliances in the room may impact performance.
